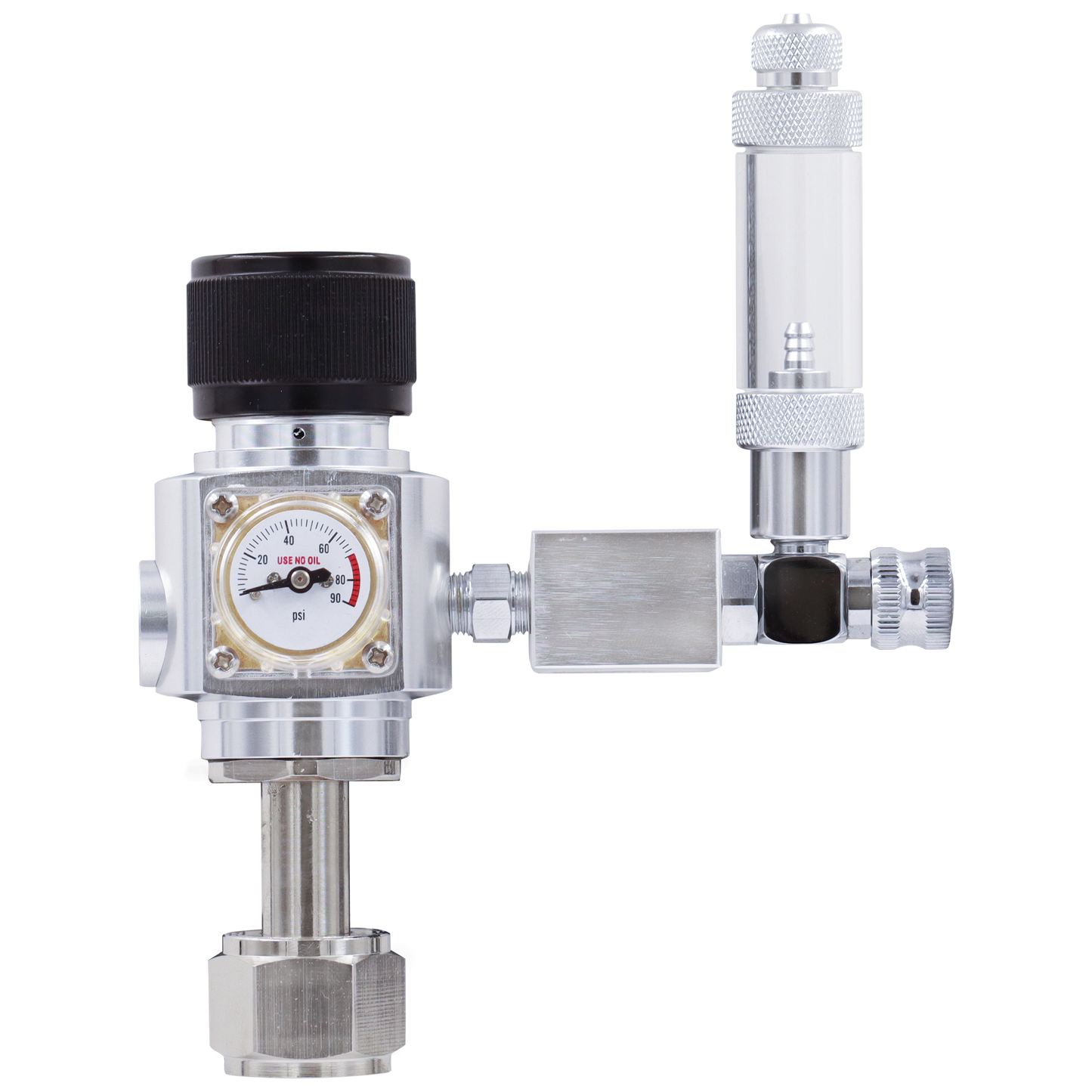

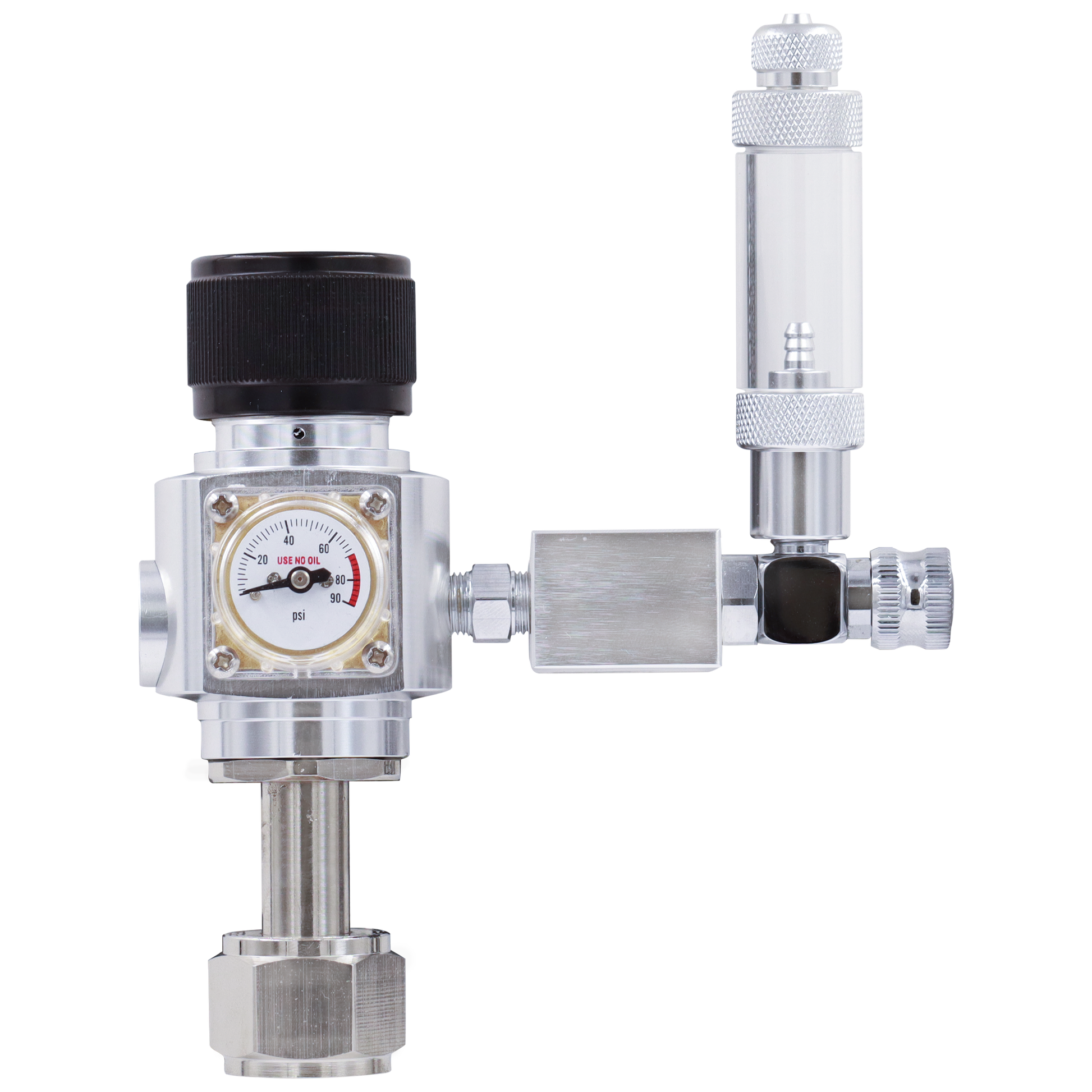

AquaLabs Mini Dual Stage CO2 Regulator
AquaLabs Mini Dual Stage CO2 Regulator
Couldn't load pickup availability
Compact, versatile and reliable. The AquaLabs Mini Dual Stage CO2 Regulator is the straightforward way to take a planted aquarium to the next level. Pressure is reduced in two distinct internal stages, which holds your output steady no matter what the cylinder is doing. A safe, low heat solenoid lets you automate injection on a timer, and the 360° rotatable needle valve means you can reach and adjust it whether your cylinder stands upright or lies on its side.
Why dual stage matters
CO2 in a cylinder is stored as a liquid. That means head pressure sits at roughly 850 psi and stays there for almost the entire life of the cylinder, right up until the last of the liquid vaporises. Only then does pressure begin to fall.
This is where single stage regulators fail, and the failure is counterintuitive. As inlet pressure falls, a single stage regulator's output pressure rises, because the force balance across its diaphragm shifts. The result is a flood of CO2 into the aquarium at a point nobody is watching for. It is known as end of tank dump, and it is one of the most common ways an otherwise healthy planted tank is lost overnight.
CO2 output across the life of a cylinder. Both regulators behave while liquid remains. Only the dual stage holds its output once the cylinder starts to empty.
How the two designs differ
One thing worth knowing when comparing regulators: dual gauges and dual stage are not the same thing. A number of regulators sold as dual stage simply carry two gauges on a single stage body. The gauges tell you cylinder and working pressure. The stages are internal and are what actually protect your fish. The AquaLabs Mini is a true dual stage regulator. If you also want a cylinder pressure gauge, that is the Pro Dual Stage.
Stable CO2 is not only a livestock issue. Fluctuating CO2 is the leading cause of black beard algae in injected aquariums, so a regulator that holds its output is doing two jobs at once.
Key features
- True dual stage construction for ultimate output stability
- Beginner friendly, with a simple and forgiving setup
- Safe, low heat solenoid for timer automation
- Adjustable working pressure, suits any diffuser or inline atomiser
- 360° rotatable needle valve for vertical and horizontal mounting cylinders
- Super precise brass needle valve
- Bubble counter with built in check valve
- Compatible with Australian CO2 cylinders
Solenoid
- 12V DC solenoid, 3.0W
Warranty
- 5 years
Which regulator do I need?
Both are true dual stage. The difference is how many aquariums you are running and how much control you want over them.
Singletank Mini Dual Stage You are hereCompact and beginner friendly, with a 360° rotatable needle valve for vertical or horizontal cylinders. One aquarium. Multi
tank Pro Dual StageDual gauges, manifold expandable to 8 independently controlled outlets. For serious single tanks and multi tank setups.
CO2 is a compressed gas. Always fit the regulator to a cylinder within its test date, tighten the regulator to the cylinder with the provided spanner and check for leaks with a soapy water spray.
Always run a check valve between the regulator and the aquarium. Without one, water can siphon back into the regulator and ruin it. A check valve is built into the supplied bubble counter.
Close the cylinder valve before disconnecting. Never dismantle a regulator while it is under pressure.
Installation video
Removal video
FAQ
Is this a good first CO2 regulator?
Yes, and that is what it is built for. The setup is simple, the 360° rotatable bubble counter means you can always reach the adjustment regardless of how your cylinder sits, and the dual stage construction removes the failure mode that catches most people out on their first system.
Plenty of first regulators are single stage, which is fine until the cylinder runs down. Starting with dual stage means you skip that lesson entirely.
What is end of tank dump and will this prevent it?
End of tank dump is a sudden surge of CO2 that occurs as a cylinder empties. Because CO2 is stored as a liquid, cylinder pressure holds steady until the last of the liquid vaporises, then falls away. In a single stage regulator, that falling inlet pressure causes output pressure to rise, flooding the aquarium.
Dual stage construction is the accepted solution. The first stage drops to a fixed intermediate pressure, so the second stage sees a near constant inlet and holds its output regardless of what the cylinder is doing.
What working pressure should I set?
Around 30 psi works for most diffusers. Our Micro Mist diffuser is the exception, since its high pressure membrane needs 45 psi to produce the ultra fine mist it is designed for. Inline atomisers generally sit in the same higher range.
Set the working pressure first, then use the needle valve for fine bubble rate control. Adjusting bubble rate by changing working pressure rather than the needle valve is a common mistake and makes the system harder to hold steady.
What does the 360° bubble counter actually do?
It lets you position the needle valve wherever it is easiest to reach. Australian CO2 cylinders are either vertical or horizontally mounting.
Being able to rotate it means the adjustment is always accessible, which matters because fine bubble rate tuning is something you will do repeatedly rather than once.
Will it fit Australian CO2 cylinders?
Yes. The Mini Dual Stage is built for the cylinder fitting used in Australia, so it will connect to cylinders from Australian gas suppliers without an adapter.
Can I run more than one aquarium from it?
No. The Mini is built for a single aquarium and does not take manifold extensions. If you are running more than one tank, or think you might, the Pro Dual Stage expands to eight independently controlled outlets from one cylinder.
Can I run the solenoid on a timer?
Yes, and you should. Start injection 90 minutes to 2 hours before your lights come on, so the aquarium has reached its target CO2 concentration by the time the plants need it. Shut it off an hour or so before lights out.
Running CO2 through the night achieves nothing, since plants do not photosynthesise in the dark, and it drops pH overnight for no benefit.
Do I still need a check valve?
A check valve is built into the supplied bubble counter. Many aquarists fit a second one closer to the aquarium as cheap insurance, since a failed check valve means water siphoning back into the regulator.
